*IMPORTANT NOTE* Large energizers (6 joules and up) DO NOT come with fence leads like the smaller energizers do. The reason for this is that the fence leads are a small gauge and allow limited energy to pass through the wires and clips.
For larger energizers Speedrite recommends using a 12-10 gauge lead out wire.

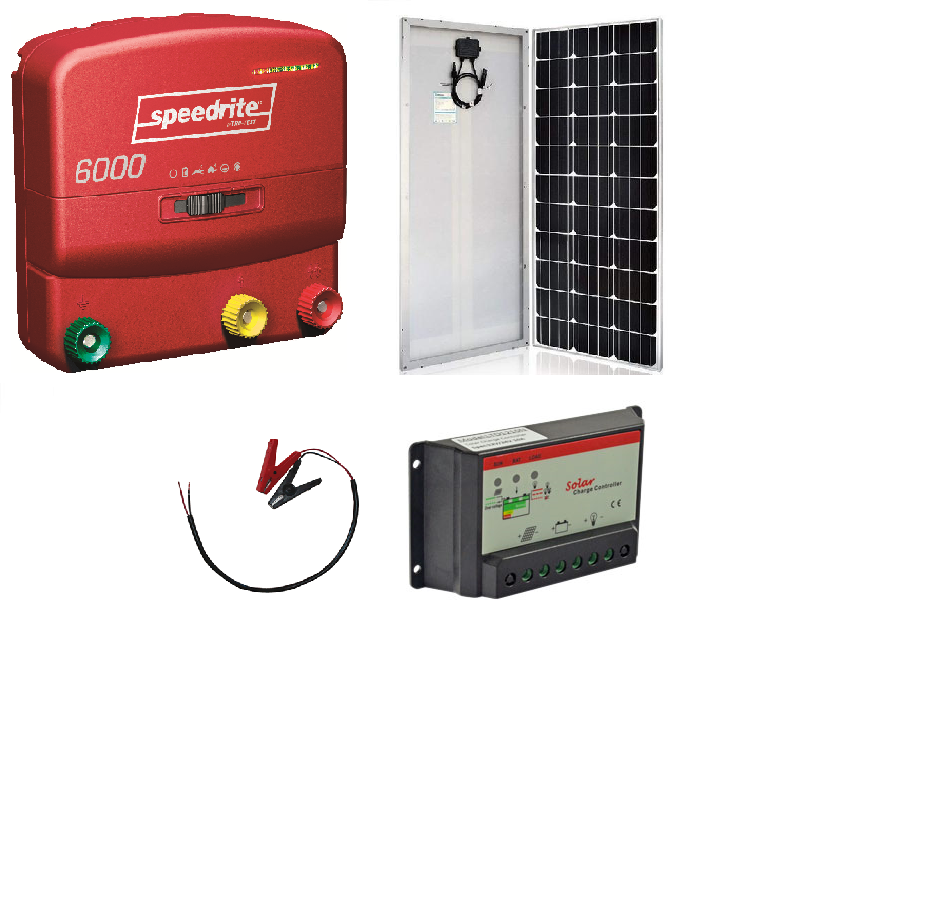

The Speedrite 6000 solar bundle includes:
1 - Speedrite 6000 Energizer (Not a remote operated energizer)
1 - 100 Watt Solar Panel
1 - 10 Amp Charge Controller
1 - Battery Harness
*Frame & Battery are not included in this bundle.
**A deep-cycle marine battery is necessary for solar operation. For information on the recommended battery amp hour capacity by unit, check your energizer's user manual or give us a call!
IMPORTANT NOTE: We do not recommend using the 6000i/6000 on fence systems that are made up of only polywire.
The Speedrite 3000 is the largest energizer that we recommend using on electric fence that consists of only polywire. If you only are using polywire, do not go with a larger charger as this can damage the unit. The reason is that an energizer's effectiveness is largely determined by matching its capability with the correct amount of fencing. Putting a large charger on an inadequate amount of fencing may cause the unit to overheat and damage itself.
Panel Specifications:
Maximum Power: 100W
Optimum Operating Voltage (Vmp): 16V
Optimum Operating Current (Imp): 6.25A
Weight: 16.5lbs
Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 20V
Short-Circuit Current (Isc): 6.45A
Dimensions: 46.9 X 19.7 X 1.4 In.
Information on the Speedrite 6000i
Speedrite 6000 Dual Powered Energizer 110 V or 12 V, 3 year - INCLUDES lightning Warranty
6 J maximum output energy (9 J stored energy)
Includes 110V power adaptor and battery leads.
