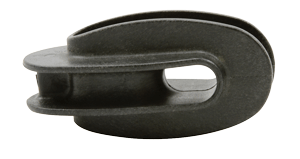

Double U End Post Insulator - 10 Pack (10 Pieces) - Heavy Duty Electrical Insulators for Fencing, Farm, and Ranch Applications - Perfect for Livestock Enclosures and Agricultural Use

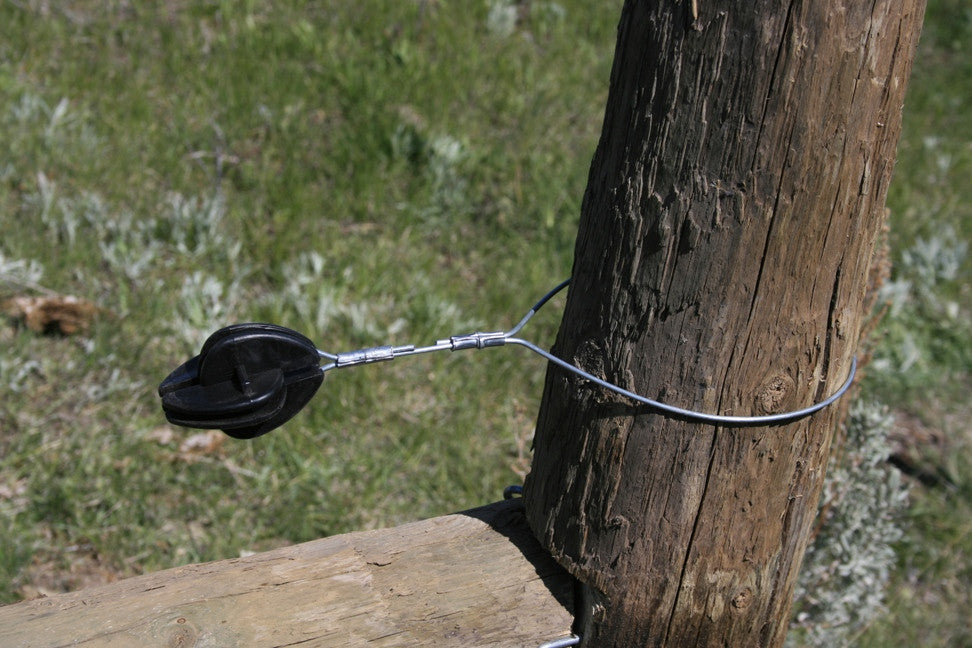

This is our preferred end insulator over the bullnose insulator. Mainly, because it is difficult to install incorrectly but it is also extremely durable. You install it by attaching it to an end or corner post. Keep your loops around the insulator and post tight as possible. This is done by measuring the required length of wire to make a loop around the post or insulator. Make a 45-degree angle bend on the last inch of wire and another bend where the two wires will meet when brought together. Always use 2 crimp sleeves (C23) when crimping each loop or a single long sleeve (C2L).

• UV Protected
• Simple Rugged Design
• Metal insert in grooves helps to prevent cutting
